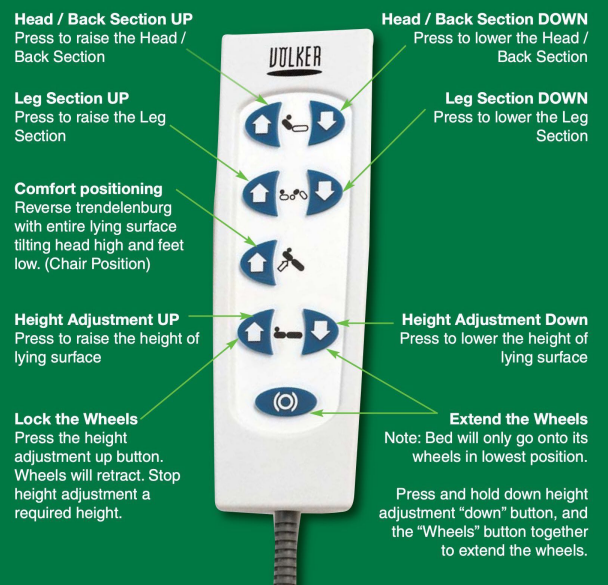

Handset Functions
Caution: Bed will only go on its wheels in the lowest position. Do not leave the bed on wheels.
Before operating the bed ensure that all safety notices have been observed and that safetychecks have been made.
The Handset Control is a “press” button operation.
The handset can be locked using a key on the rear of the handset. This will disable the handsetcontrol and therefore all movement functionality of the bed.
To ‘operate’ the bed, press the required function button and hold pressed till the requiredposition of the bed is achieved.
To ‘stop’ the operation of the bed, release the button.

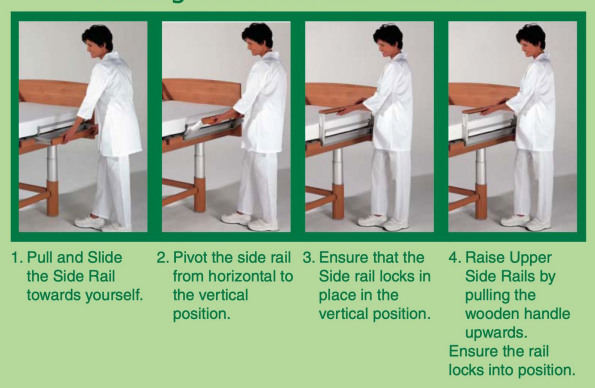

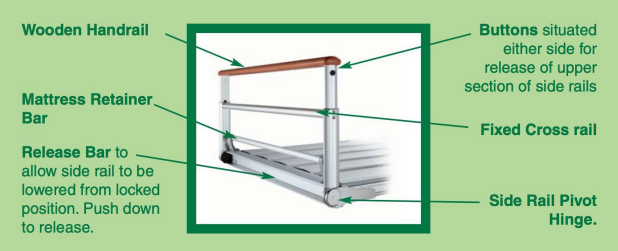

Lowering the 3080 Assist Side Rail
Pushing the “leg section UP” button moves the bed to the “raised knee” position. Manually section of the foot section is as follows:
The foot section can be raised manually by lifting the foot section to the required position. There are four set manual positions which are determined by a ratchet system.
To lower from the manual position setting, manually raise foot section to uppermost position and then lower. This will release ratchet positions.
The Comfort "chair" Position
Pushing the “comfort positioning” button moves the bed into a sitting chair position, enabling the user to watch television or read comfortably. Only the head of the bed is raised, while the back and leg sections remain individually adjusted – letting you sit in bed just like you would in your favourite chair.
